Central Host Dust Extraction System
Central Host Dust Extraction System is to finish surface sanding treatment by pneumatic or electrical tools without water. It sucks dust produced by sanding work to the filtering system, which improves working efficiency dramatically and builds a dust-free working environment.

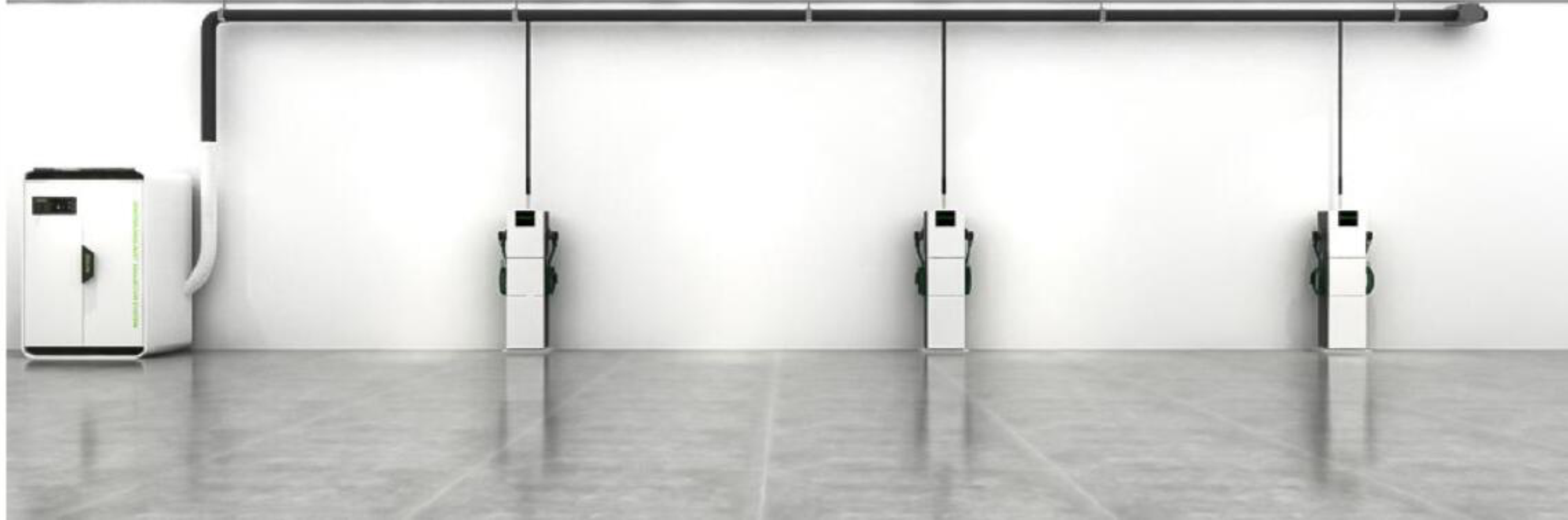

The Terminals Quantity and the Hose Size are designed according to your workstations.
If you think the central host dust extraction system is too complicated, you can choose a moveable one instead.
Please kindly contact us to make the design.

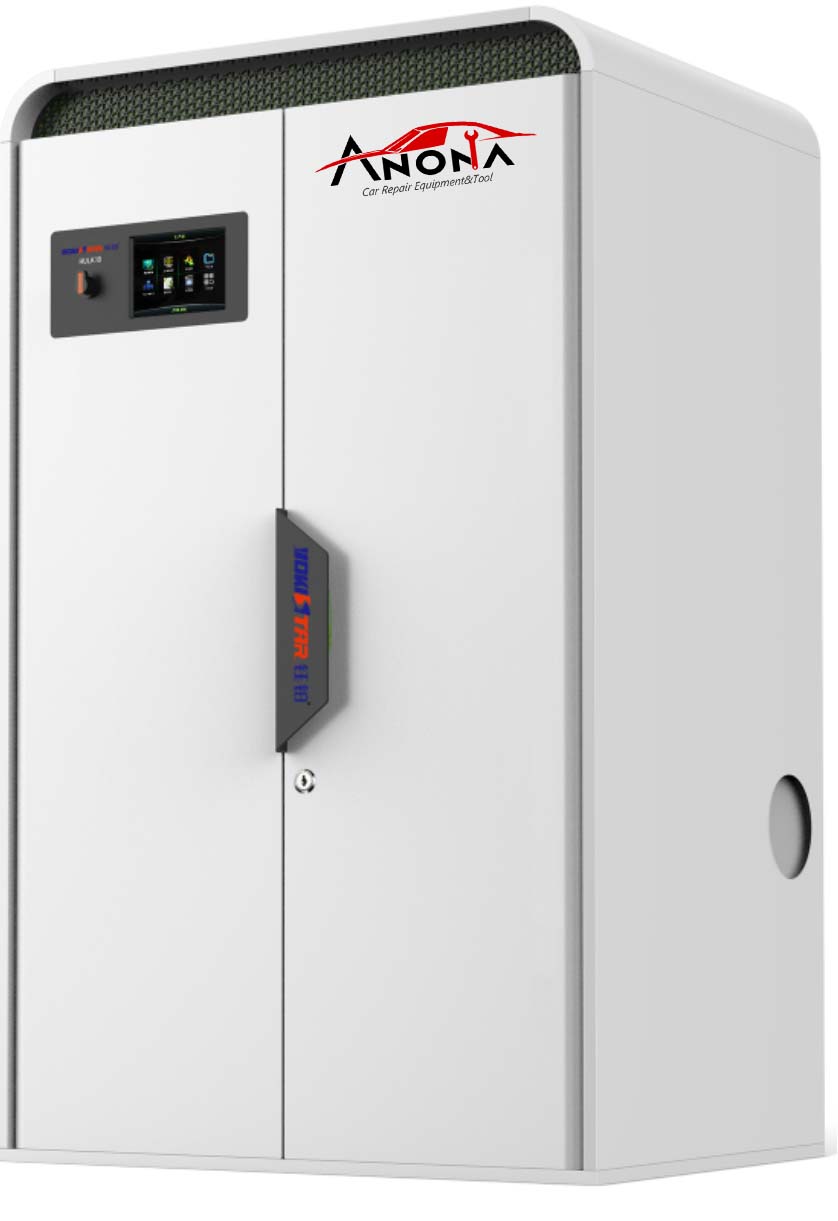

The power of the host can be 5.5KW,7.5KWor 11KW, even much more robust. It will be designed according to the distance and workstation quantity.
The terminal can be ten sets at most, while the primary host is ONE.
It has a frequency inverter for controlling the power of the motor, saving energy, and cost.
All dust is collected into the primary host for convenient cleaning and maintenance.
The primary filter is cleaned by itself for long using life.
It is with the reverse-flow cleaning function, clean the piping system itself.
The amicable touch screen control system shows the motor frequency, primary filter working pressure, whole machine running time, and motor inner and outer temperature.
It will suggest you change the filter bag and show you many polishing videos for learning.
The control system also supervises all terminal’s working situations to make the troubleshooting more accessible.
It will suggest you change the filter bag and show you many polishing videos for learning.
It is equipped with TWO deafened for reducing the noise.
Soft-staring method.
