INDUSTRIAL 3 AXIS PLATFORM LIFT

YOKISTAR 3-Axis Movement Platforms are designed and manufactured for a more convenient and efficient operation in spray booths, where quick and safe access in height is essential.

Three-axis, horizontal movement (X-axis) of the personnel lift, vertical motion (Z-axis) of the basket, and the action in and out of the basket (Y-axis) all can be easily reached by versatile YOKISTAR 3-Axis Movement Platforms. We can customize it according to the different sizes of your spray booths. Numerous personnel lift’s real cases and multiple attainable modifications make it a perfect match for your spray booth.

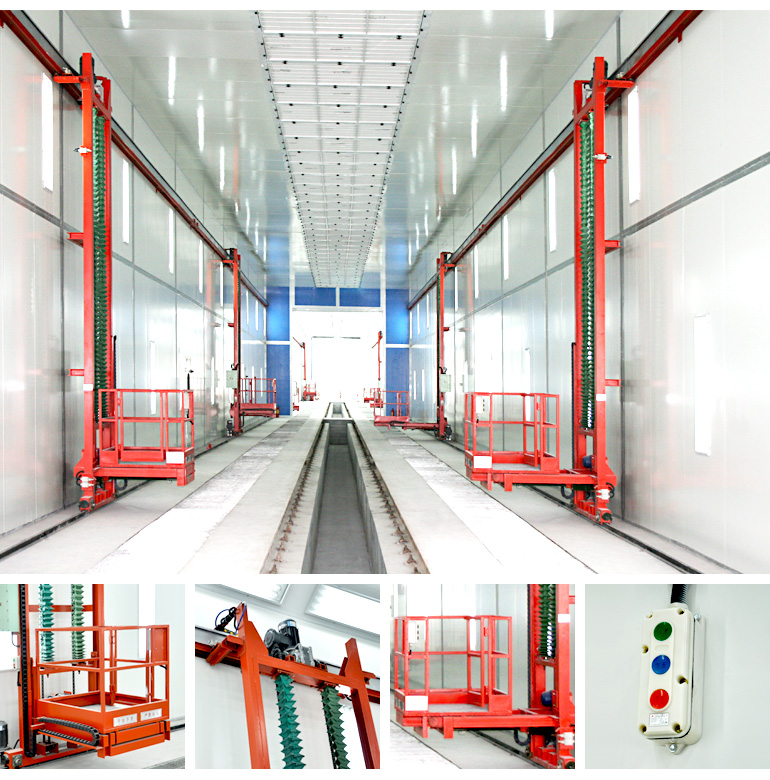

Take a look at the actual photos of a spray booth with a set of Industrial 3 Axis Platform Lift.

3-Axis Movement Platform

How to work

  • Travel Rate: 8 meters per minute
  • Travel Distance: 20,000mm
  • Drive Mechanism: 0.75kw anti-explosion motor(explosion-proof grade: EXDIIBT4), reduction gear
    Horizontal Control: button control in the front of the guard
  • Travel Rate: 5 meters per minute
  • Working Area: 550mm~3,000mm from floor
  • Drive Mechanism: 1.5kw anti-explosion motor (explosion-proof grade: EXDIIBT4), reduction gear, sprocket, chain, shaft, bearing seat, scroll wheel shield
  • Vertical Control: button control in the front of the guard
  • Travel Rate: 3 meters per minute
  • Extended Distance: 500mm
  • Drive Mechanism: 0.55kw anti-explosion motor (explosion-proof grade: EXDIIBT4), screw, sprocket, chain, shield
  • Extended Control: button control in the front of the guard
MAIN SPECIFICATIONS

A. Payload: 300kg
B. Dimension of Basket: 900x650x900mm (LxWxH)
C. Working Height: 550mm~3,000mm from floor
D. Extension Distance: 500mm
E. Upper Rail: 10# channel steel, welded on the column of the spray booth, 3,600mm from floor
F. Lower Rail: 12kg/m light rail, welded on the steel plates embedded in the ground
G. Noise Under Working: ≤70db
H. Temperature Under Working: -15℃~60℃
I. Working Voltage of Button: 36V/AC
J. Total Power: 3kw

Features

  1. Rail Scraper
  2. Emergency Stop Button
  3. Orange（Any colour is optional）
  4. Inward Swing Door
  5. Applicable for YS-TB20 spray booth
  6. All the circuits are anti-explosion
  7. Easy Installation
  8. 12 Months Warranty
  9. 20 Business Days Delivery
  10. Bubble Films Packaging For Sea Transportation
  11. All sizes can be customized according to the different spray booths.
